10GHz Military Grade COTS Compact Radars

C Series

C Series COTS Radar

10GHz Military Grade Licensed and Unlicensed Radars

Using the licensed 10GHz band (in contrast to using unlicensed bands) ensures the utmost in reliability.
Covering 30–250 acres, our C Series radars are currently installed on every inhabited continent. In fact, one of the main reasons our customers choose us over the competition is because our radars perform reliably well in any environment and weather condition they’re used in.
Commercial Off the Shelf. It’s also so small it can be installed on nearly any existing infrastructure and setup time is a matter of minutes instead of hours or days. The wider field of view of the C Series makes it easier to acquire and track potential threats on rugged, uneven terrain.

Applications for Mobile Military

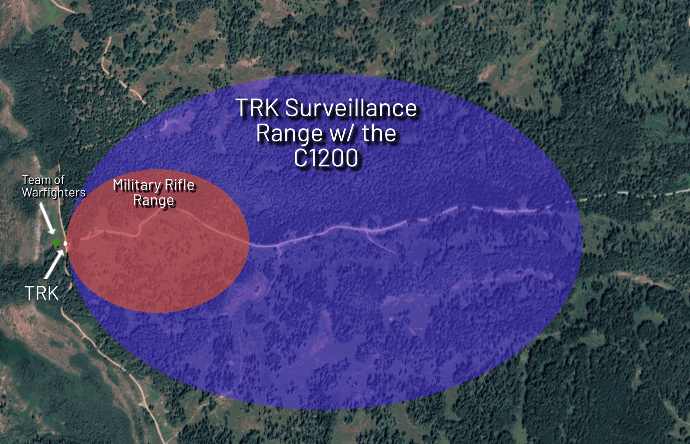

The range of the average military rifle is approximately 500 m, though some specialized rifles have even greater ranges. The C1200 radar in the C Series detects on-foot threats no later than 1500 m away and vehicle threats at 2000 m away.

This makes the C1200 an excellent lightweight option for inclusion in a Tactical Radar Kit™ (TRK™). Mobile warfighter teams use these kits to protect themselves in the feild, detecting nearby threats at great distances through all low-light hours and environmentally obscuring conditions.

Learn more about Tactical Radar Kits

All Spotter Global devices fall under the designation of COTS (Commercial Off-the-Shelf) and therefore are available for both military and public use. Spotter Global has been a supplier to Special Operations Command (SOCOM) since 2011.

Some Common Uses For The

Long Range C Series Radar

Target Acquirement

The C1200, with the ability to detect on-foot and vehicle threats farther than most sniper rifle ranges, can aid with target acquirement. Snipers can’t do their job until they 1) Know that something’s there and 2) precisely where it is.

The C1200 is one of the radar options available with the TRK system.

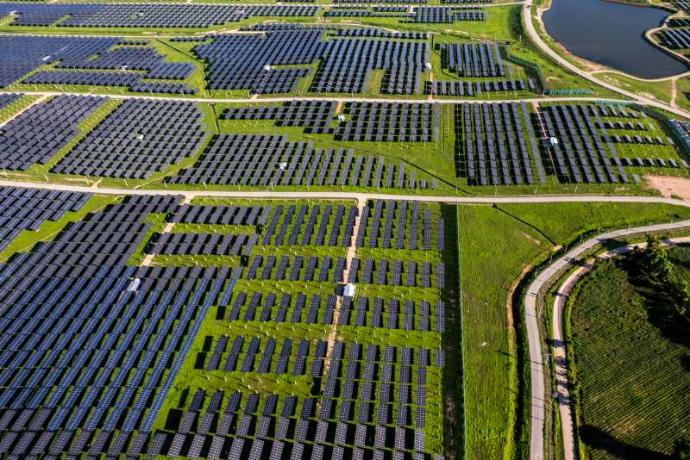

Solar Farm Protection

Solar farm theft and vandalism is on the rise.

Wide-area C Series radars detect threats long before threats breach the fence line. The moment a potential threat is detected or an alarm zone is breached, floodlights, alarms, hyperspikes, law enforcement notifications can be triggered to protect valuable assets

Fish Farm Protection

Speedboats coming to rob and vandalize fish farms move fast.

Overwater C Series radars detect overwater threats long before they get close enough to do harm, triggering both alarms and mitigation measures to head them off. All C Series radars are made to the IP67 standard.

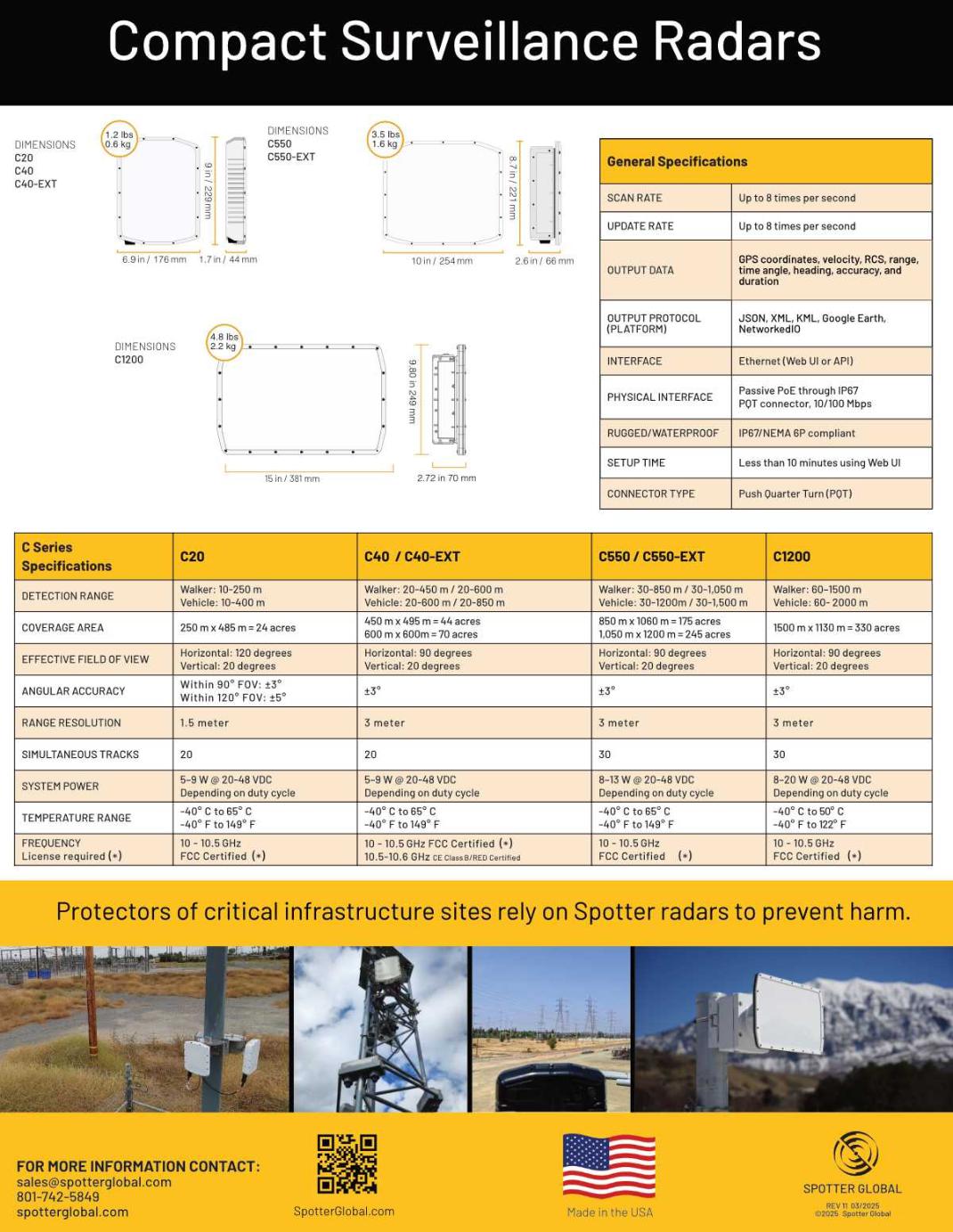

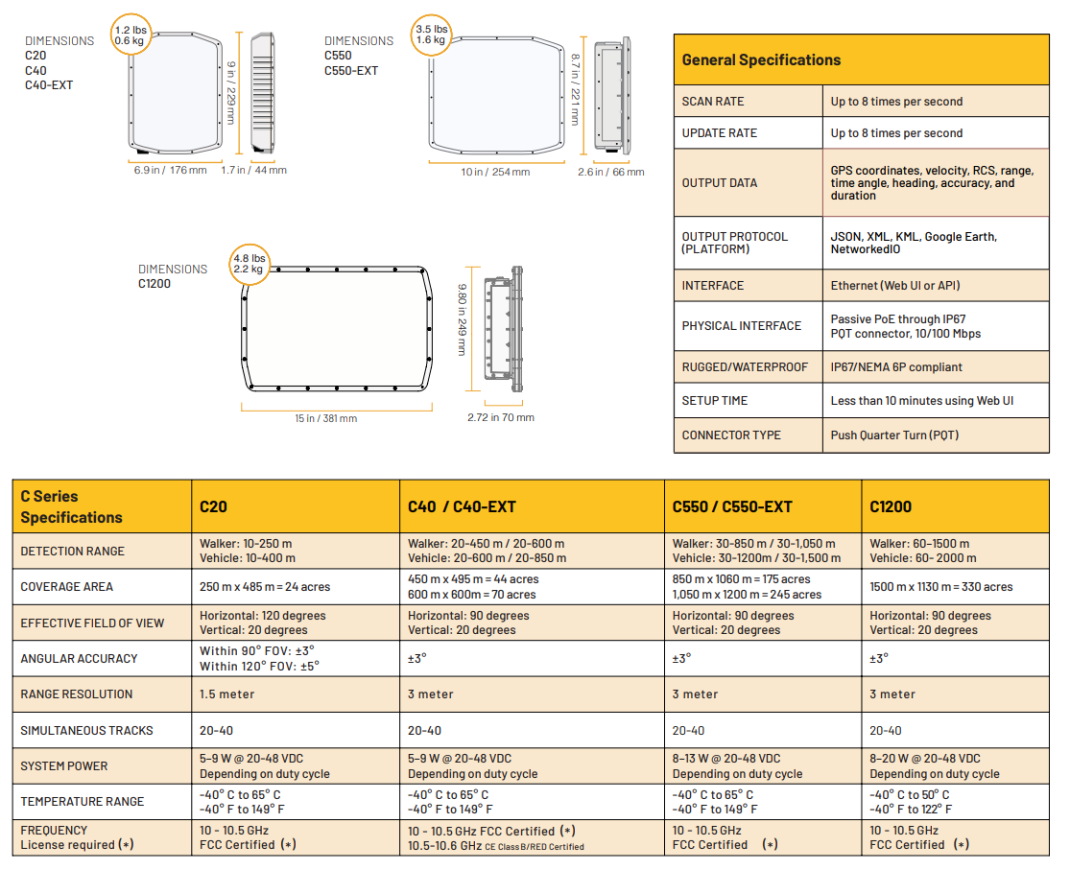

C Series Specifications

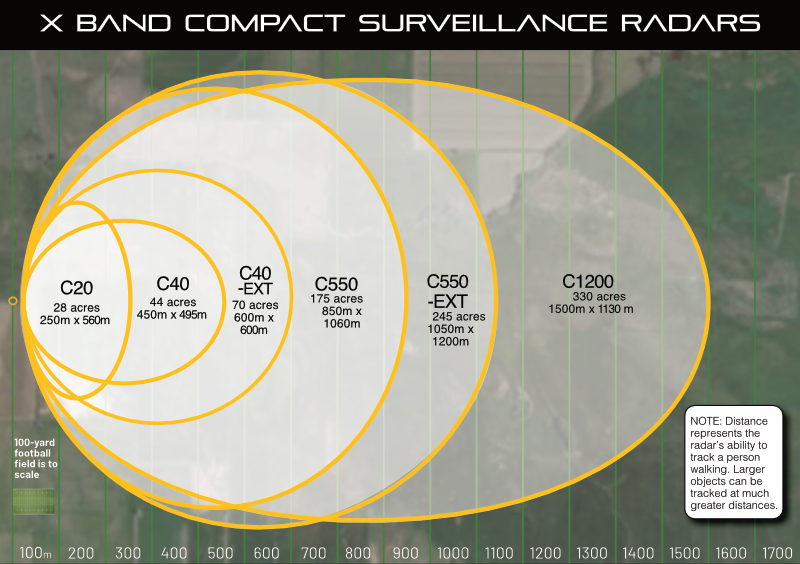

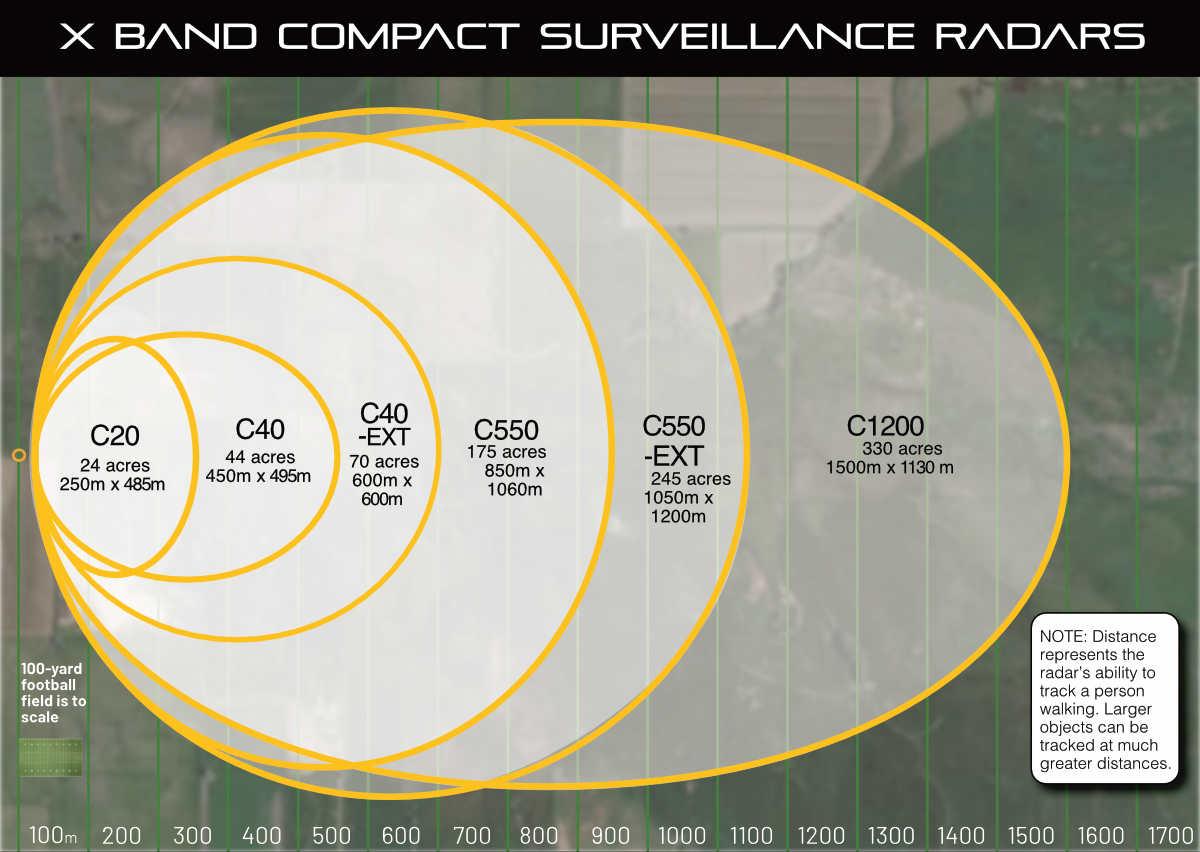

Covering 30–250 acres, our C-Series radars are currently installed on every inhabited continent.

Download: Datasheet C Series Radars.
